Micro LED

G Model

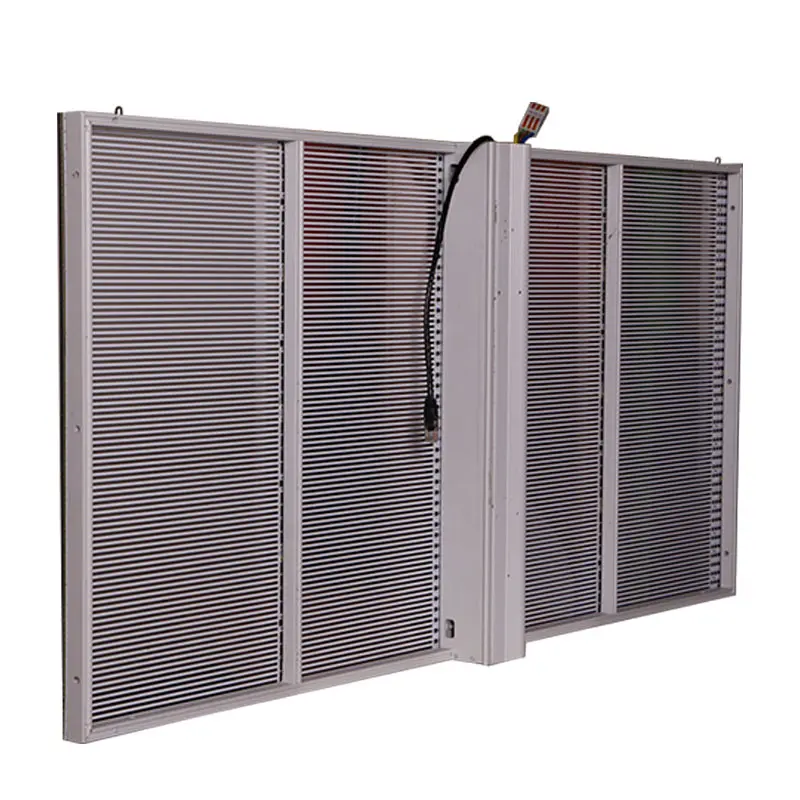

Transparent LED Screen Panels – Enbon G Model HD, 90% Clear
  • High permeability: The permeability can reach 65%~90%
  • Light weight: The thickness is about 1cm, light weight Energy saving: Low power consumption
  • Quick installation: Flexible structure, convenient installation process
  • Simple operation: Can be connected with computer
Item Indoor
Pixel Pitch 2.6-5.2 3.91-7.82 5.21-10.42 10.4
LED lamp SMD1415 SMD1921 SMD1921 SMD1921
Density 73728dots/m2 32768dots/m2 18432dots/m2 9216dots/m2
Brightness ≥1000-5000nits ≥1000-5000nits ≥1000-5000nits ≥1000-5000nits
IP rating IP45 IP45 IP45 IP45
Cabinet Materiel Aluminum
Scan 16scan 8scan 4scan 2scan
Module weight 0.25kg 0.25kg 0.25kg 0.25kg
Cabinet Weight 5.5kg 5.5kg 5.5kg 5.5kg
Module size 500*125mm 500*125mm 500*125mm 500*125mm
Cabinet size 1000*500*75mm 1000*500*75mm 1000*500*75mm 1000*500*75mm
Module pixel 192*24dots 128*16dots 96*12dots 48*12dots
Cabinet pixel 384*96dots 256*64dots 192*48dots 96*48dots
Max Power 680w/sqm 680w/sqm 680w/sqm 680w/sqm
Average Power 230w/sqm 230w/sqm 230w/sqm 230w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16 Bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

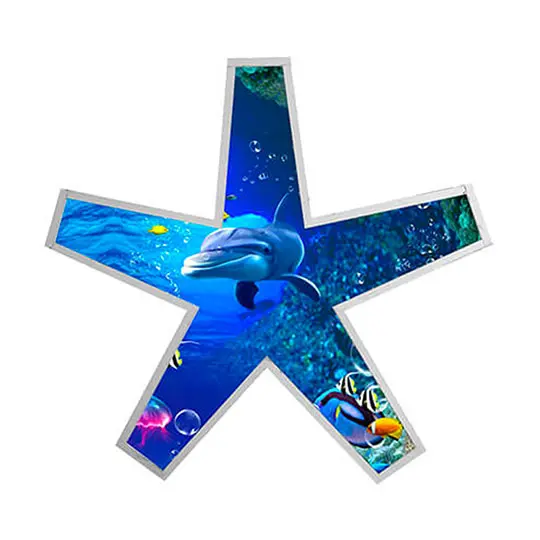

Enbon X Model

The advantages of the soft module in terms of display effect and weight

High flexibility: The soft module uses a flexible substrate material that can be bent and folded to adapt to irregular-shaped installation needs.

Thin and light: Soft modules are relatively thin and lightweight, making them easy to carry and install. It can be used in situations that require quick set-up and disassembly.

COB Model

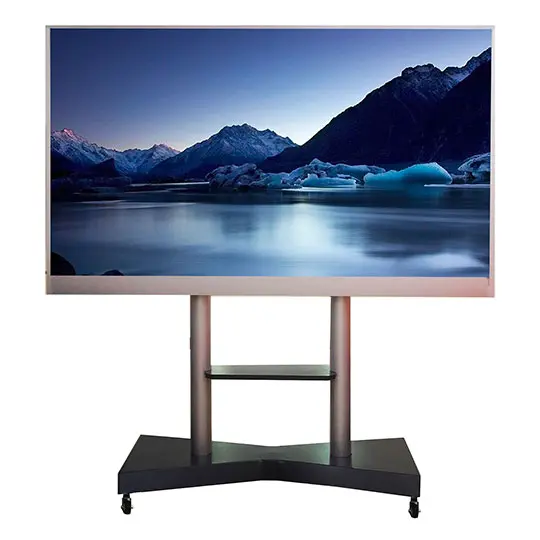

COB LED Display Wall-Mounted & Vertical Fixed HD Screen

COB LED display with waterproof, dustproof, anti-collision features and wireless mirroring, supports WiFi writing and commenting via Android devices

Item Indoor
Pixel Pitch 2.604 2.976 3.91 4.81
LED lamp SMD2020 SMD2020 SMD2020 SMD2020
Density 147456dots/m2 112896dots/m2 65536dots/m2 43264dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits 800-1000nits
IP rating IP31 IP31 IP31 IP31
Cabinet Materiel Die-casting Aluminum
Scan 24scan 21scan 16scan 13scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg
Module size 250*250mm 250*250mm 250*250mm 250*250mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm
Module pixel 96*96dots 84*84dots 64*64dots 52*52dots
Cabinet pixel 192*192dots 168*168dots 128*128dots 104*104dots
Max Power 500w/sqm 500w/sqm 500w/sqm 500w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm 160w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

Poster Model

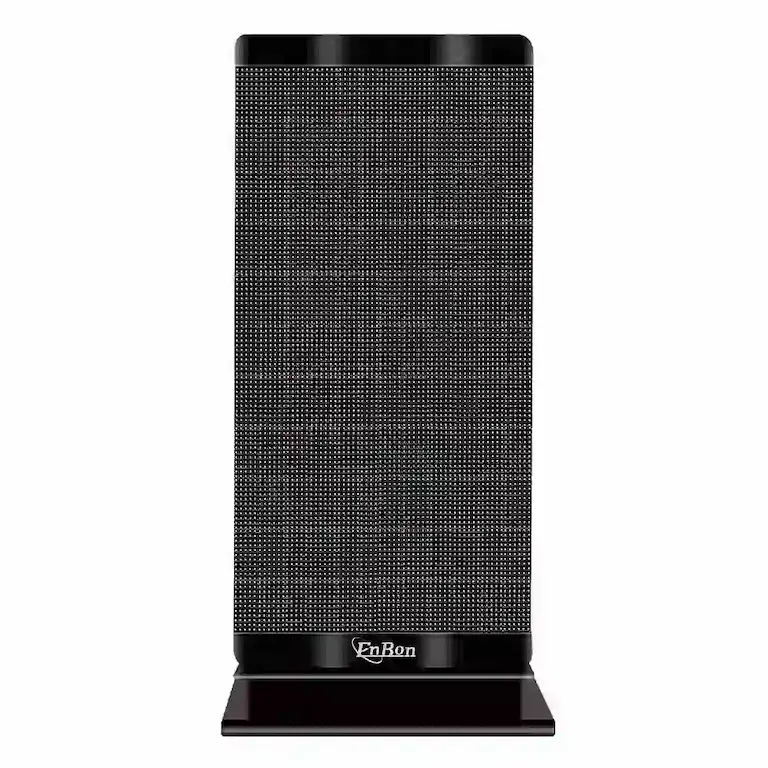

Enbon Poster Model Convenience & Control System Led Poster Display With HD Full Colour

Enbon Poster model used for led poster display with High brightness and high definition, has various sizes and shapes and real-time updates and flexibility

Item Indoor
Pixel Pitch 2.604 2.976 3.91
LED lamp SMD2020 SMD2020 SMD2020
Density 147456dots/m2 112896dots/m2 65536dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits
IP rating IP31 IP31 IP31
Cabinet Materiel Iron
Refresh Rate 3840 Hz 3840 Hz 3840 Hz
Scan 24scan 21scan 16scan
Cabinet weight 0.5kg 0.5kg 0.5kg
Module size 250*250mm 250*250mm 250*250mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm
Adviced viewing 96*96dots 84*84dots 64*64dots
Input Voltage 192*192dots 168*168dots 128*128dots
Max Power 500w/sqm 500w/sqm 500w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16 bit
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃
