Outdoor

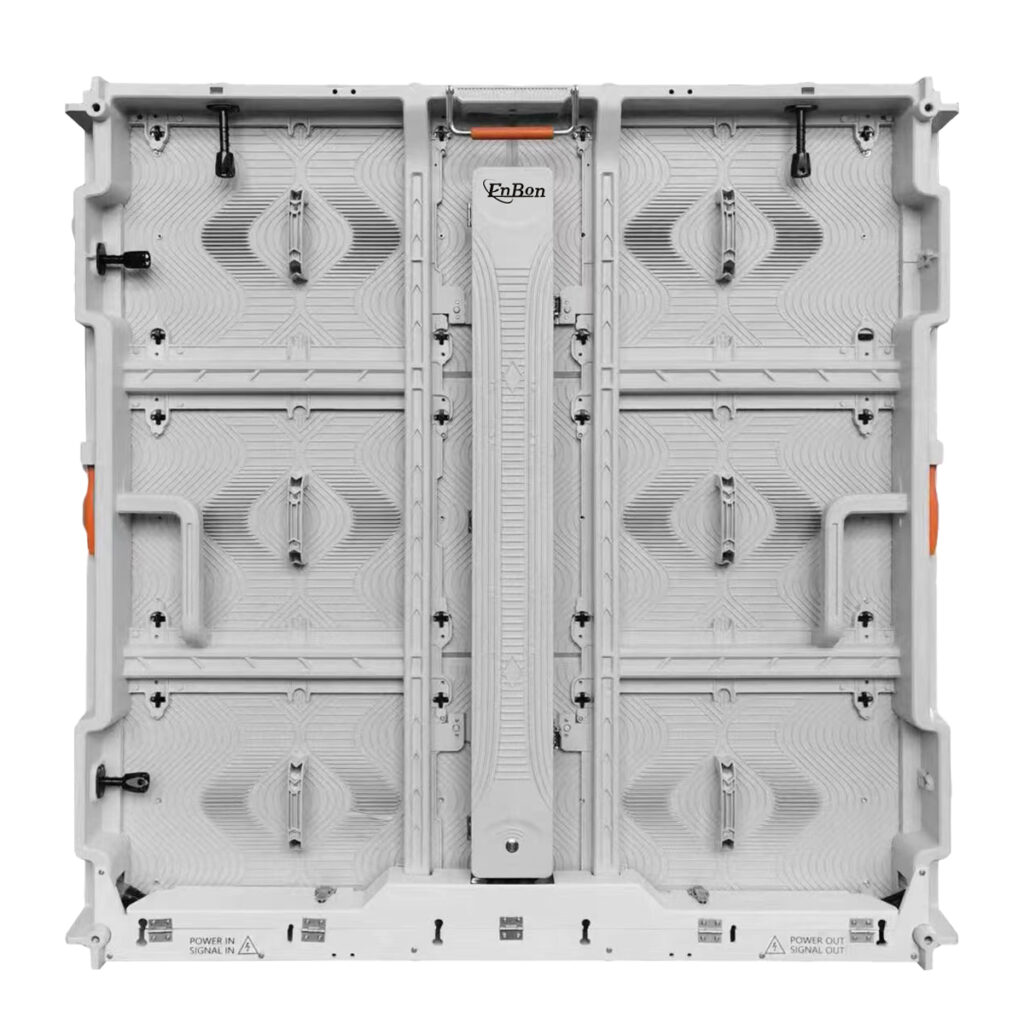

FC Pro Model

Outdoor Fixed HD LED Screen Enbon FC Pro Waterproof & Slim
  • Light weight of the cabinet : 23kg
  • Special waterproof design : IP65
  • Perfect screen flatness
  • Support front and back service
  • 480mm*320mm size modules

Item Outdoor
Pixel Pitch 5 6.67 8 10
LED lamp SMD2727 SMD2727 SMD2727/3535 SMD2727/3535
Density(dots/m2) 40000 22500 15625 10000
Brightness ≥5500=10000nits ≥5500=10000nits ≥5500=10000nits ≥5500=10000nits
IP rating IP65 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum
Scan 7scan 6scan 4scan 2scan
Module weight 2kg 2kg 2kg 2kg
Cabinet Weight 23kg 23kg 23kg 23kg
Module size(mm) 480*320 480*320 480*320 480*320
Cabinet size(mm) 960*960*92 960*960*92 960*960*92 960*960*92
Module pixel 96*64dots 72*48dots 60*40dots 48*32dots
Cabinet pixel 192*192dots 144*144dots 120*120dots 100*100dots
Max Power 500w/sqm 500w/sqm 500w/sqm 500w/sqm
Average Power 185w/sqm 185w/sqm 185w/sqm 185w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

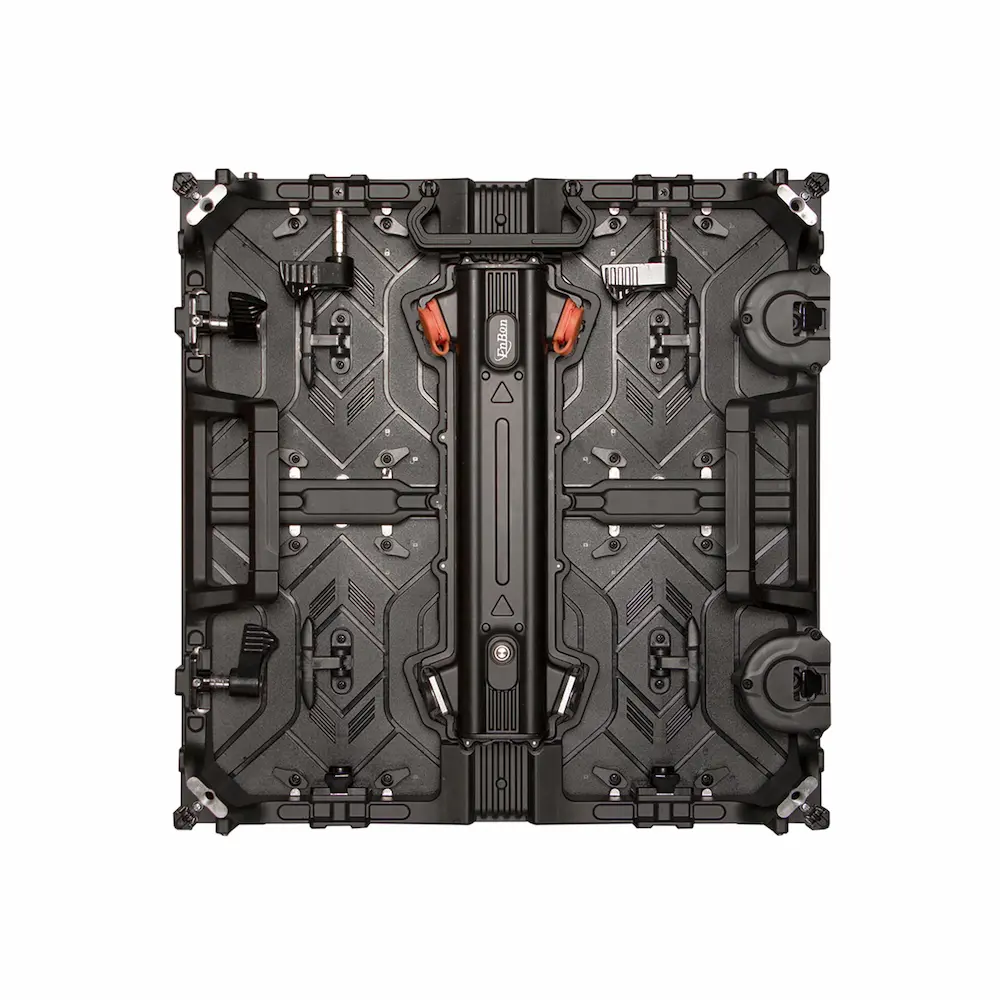

FC Model

Enbon FC Ultra Thin LED Screen With Low Consumption, Waterproof And Outdoor Fixed Mount
  • Lightweight Cabinet 8KG
  • Special waterproof design : IP65
  • Support front and back service
  • Low power consumption
  • Different modules use same HUB
Item Outdoor
Pixel Pitch 1.95 2.604 2.97 3.91
LED lamp SMD1415 SMD1415 SMD1415 SMD1921
Density(dots/m2) 262144 112896 112896 65536
Brightness ≥4500 nits ≥4500 nits ≥4500 nits ≥6000 nits
IP rating IP65 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum
Scan 32scan 24scan 21scan 16scan
Module weight 1kg 1kg 1kg 1kg
Cabinet Weight 8kg 8kg 8kg 8kg
Module size(mm) 250*250 250*250 250*250 250*250
Cabinet size(mm) 500*500*85 500*500*85 500*500*85 500*500*85
Module pixel 128*128dots 96*96dots 84*84dots 64*64dots
Cabinet pixel 256*256dots 168*168dots 168*168dots 128*128dots
Max Power 550w/sqm 550w/sqm 550w/sqm 550w/sqm
Average Power 185w/sqm 185w/sqm 185w/sqm 185w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

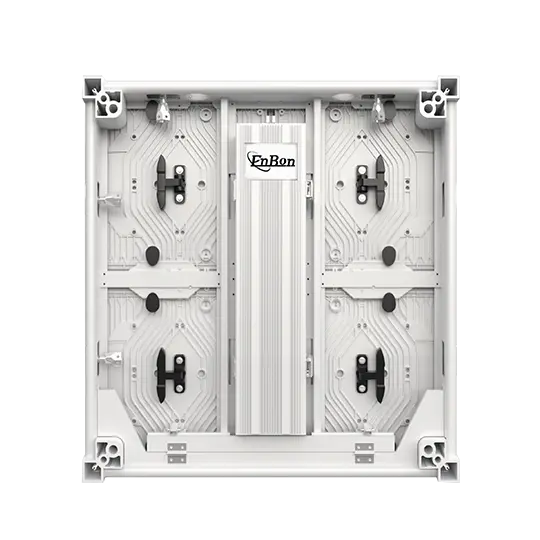

FC B Model

Enbon FC B Outdoor LED Screen Full-Color, Dust & Waterproof
  • Easy maintaince and service
  • Special waterproof design : IP65
  • Perfect screen flatness
  • Support front and back service
  • 320mm*320mm size module
  • 960mm*960mm size cabinet
  • Different modules use same cabinet
Item Outdoor
Pixel Pitch 1.95 2.604 2.97 3.91
LED lamp SMD1415 SMD1415 SMD1415 SMD1921
Density(dots/m2) 262144 112896 112896 65536
Brightness ≥4500 nits ≥4500 nits ≥4500 nits ≥6000 nits
IP rating IP65 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum
Scan 32scan 24scan 21scan 16scan
Module weight 1kg 1kg 1kg 1kg
Cabinet Weight 8kg 8kg 8kg 8kg
Module size(mm) 250*250 250*250 250*250 250*250
Cabinet size(mm) 500*500*85 500*500*85 500*500*85 500*500*85
Module pixel 128*128dots 96*96dots 84*84dots 64*64dots
Cabinet pixel 256*256dots 168*168dots 168*168dots 128*128dots
Max Power 550w/sqm 550w/sqm 550w/sqm 550w/sqm
Average Power 185w/sqm 185w/sqm 185w/sqm 185w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

FC D Model

FC D Model Outdoor LED Display Waterproof High Brightness
  • Lightweight Cabinet 7.5KG
  • Special waterproof design : IP65
  • Support front and rear service
  • Low power consumption
  • Extremely resistant to salt corrosion
