B Pro Model

Indoor LED Video Wall Screen Enbon B Pro for Concert Stage
  • Designed for the Indian market
  • High cost performance
  • The cabinet weight is only 9kg
  • Refresh Rate ≥3840Hz
  • The quick lock design
  • The magnetic suction module
  • Outdoor waterproof IP65
  • Support personalized customization
Item Indoor Outdoor
Pixel Pitch 3 3.84 3.84 4.8
LED lamp SMD2020/2121 SMD2020/2121 SMD1921 SMD1921
Density 110889dots/m2 67600dots/m2 67600dots/m2 43264dots/m2
Brightness ≤800 nits ≤800 nits ≥4000 nits ≥4000 nits
IP rating IP45 IP45 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 25scan 15scan 15scan 10scan
Module weight 1kg 1kg 1kg 1kg
Cabinet Weight 9kg 9kg 9kg 9kg
Module size 288*288mm 288*288mm 288*288mm 288*288mm
Cabinet size 576*576*85mm 576*576*85mm 576*576*85mm 576*576*85mm
Module pixel 96*96dots 75*75dots 75*75dots 60*60dots
Cabinet pixel 192*192dots 150*150dots 150*150dots 120*120dots
Max Power 600w/sqm 600w/sqm 750w/sqm 750w/sqm
Average Power 360w/sqm 360w/sqm 450w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous synchronous/asynchronous
Gray Scale 16 bit 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90% 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃  ﹣20 ~﹢65℃

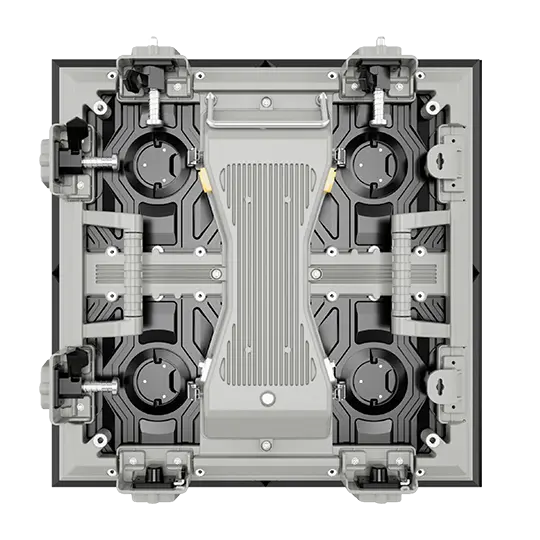

R5 90° Design

Enbon R5 90° Design Hypotenuse Cabinet With Pixel Pitch P2.604 And P3.91
  • Cabinet size is 500*500mm, pixel pitches are P2.604 (for outdoor) and P3.91 (for indoor)
  • Hardlink cabinet, support front and rear maintenance
  • Waterproof level is IP65, don’t need to afraid of rainy days
  • Can be assembled into a cube or cuboid LED display
  • Brightness reaches 4000nits, with very excellent display effect
Item Indoor Outdoor
Pixel Pitch 3 3.84 3.84 4.8
LED lamp SMD2020/2121 SMD2020/2121 SMD1921 SMD1921
Density 110889dots/m2 67600dots/m2 67600dots/m2 43264dots/m2
Brightness ≤800 nits ≤800 nits ≥4000 nits ≥4000 nits
IP rating IP45 IP45 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 25scan 15scan 15scan 10scan
Module weight 1kg 1kg 1kg 1kg
Cabinet Weight 9kg 9kg 9kg 9kg
Module size 288*288mm 288*288mm 288*288mm 288*288mm
Cabinet size 576*576*85mm 576*576*85mm 576*576*85mm 576*576*85mm
Module pixel 96*96dots 75*75dots 75*75dots 60*60dots
Cabinet pixel 192*192dots 150*150dots 150*150dots 120*120dots
Max Power 600w/sqm 600w/sqm 750w/sqm 750w/sqm
Average Power 360w/sqm 360w/sqm 450w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous synchronous/asynchronous
Gray Scale 16 bit 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90% 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃  ﹣20 ~﹢65℃

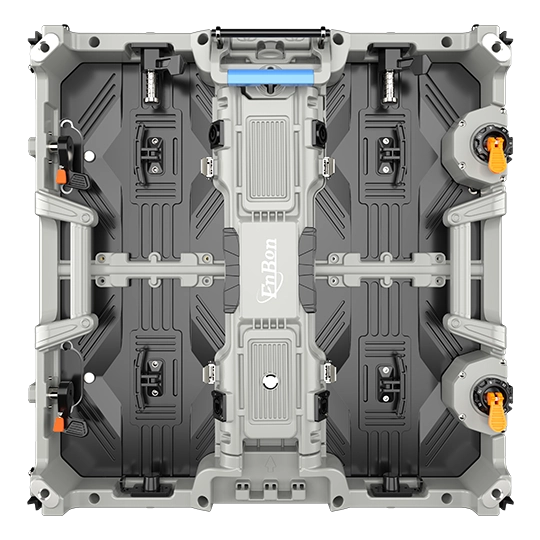

R5 Model

LED Screen Rental Stage -Enbon R5 Model Arc Lock Design
  • Integrated cabinet design saves maintenance time
  • Plane lock and arc lock are integrated to support a variety of scene applications
  • Arc lock support  0°/±2.5°/±5°±7.5°
  • Modular design of power control cabinet, no wire is needed to connect the module
  • The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
Item Indoor Outdoor
Pixel Pitch 1.56 1.95 2.604 2.976 3.91 2.604 2.976 3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD2020 SMD2020 SMD1415 SMD1415 SMD1921
Density(dots/m2) 410881 262144 147456 112896 65536 147456 112896 65536
Brightness ≤ 800nits ≤ 800nits ≤ 800nits ≤ 800nits ≤  800nits ≥ 4000nits ≥ 4000its ≥ 4000nits
IP rating IP45 IP45 IP45 IP45 IP45 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 40scan 32scan 32scan 13scan 16scan 32scan 21scan 16scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg 7.5kg 8kg 8kg 8kg
Module size(mm) 250*250 250*250 250*250 250*250 250*250 250*250 250*250 250*250
Cabinet size(mm) 500*500*85 500*500*85 500*500*85 500*500*85 500*500*85 500*500*85 500*500*85 500*500*85
Module pixel 160*160dots 128*128dots 96*96dots 84*84dots 64*64dots 96*96dots 84*84dots 64*64dots
Cabinet pixel 320*320dots 256*256dots 192*192dots 168*168dots 128*128dots 192*192dots 168*168dots 128*128dots
Max Power 600w/sqm 600w/sqm 600w/sqm 600w/sqm 600w/sqm 750w/sqm 750w/sqm 750w/sqm
Average Power 360w/sqm 360w/sqm 360w/sqm 360w/sqm 360w/sqm 450w/sqm 450w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way Synchronous/Asynchronous Synchronous/Asynchronous
Gray Scale 16 bit 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90% 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃  ﹣20 ~﹢65℃

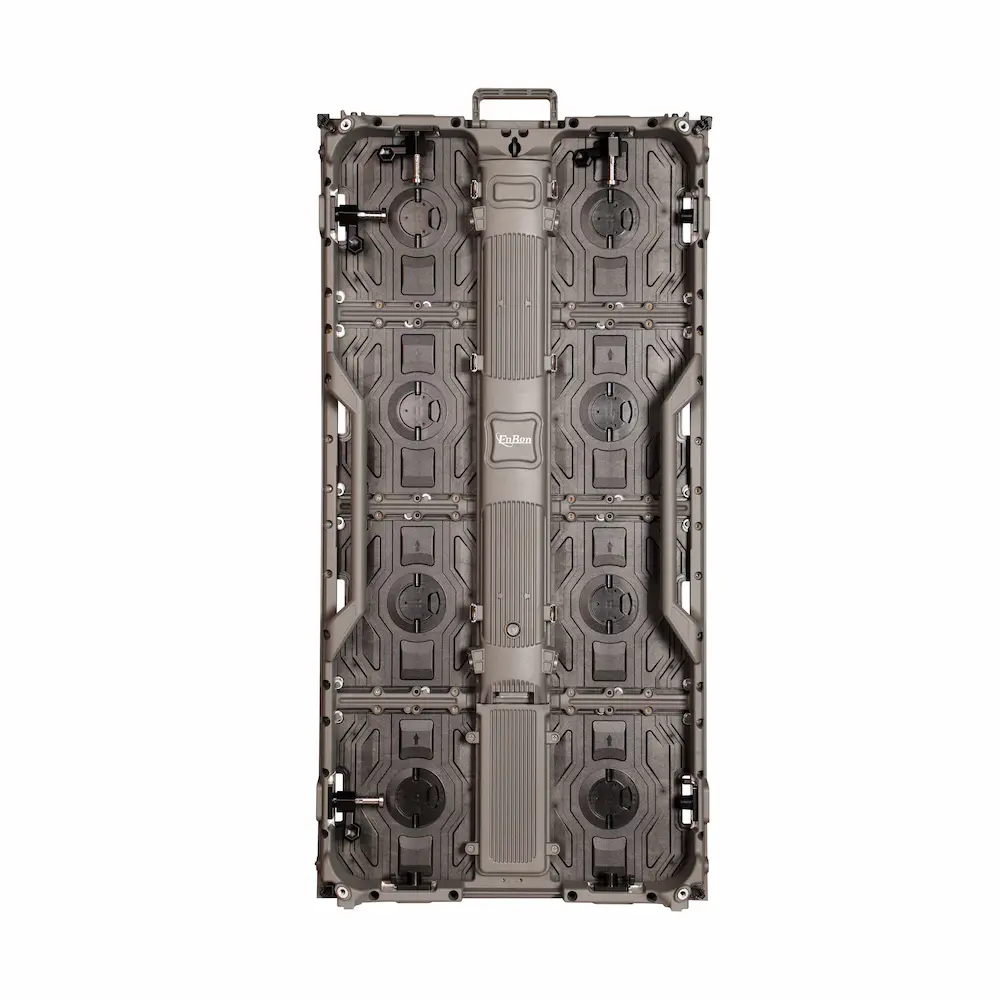

R5 Plus Model

Indoor LED Screen Rental products Enbon R5 delivers 4000 nits brightness, IP65 waterproofing, and adjustable arc lock for versatile stage use.
  • Integrated cabinet design saves maintenance time
  • Plane lock and radian lock are integrated to support a variety of scene applications
  • Radian lock support  0°/±2.5°/±5°±7.5°
  • Modular design of power control cabinet, no wire is needed to connect the module
  • The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
Item Indoor Outdoor
Pixel Pitch 1.56 1.95 2.604 2.976 3.91 2.604 2.976 3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD2020 SMD2020 SMD1415 SMD1415 SMD1921
Density(dots/m2) 410881 262144 147456 112896 65536 147456 112896 65536
Brightness ≤ 800nits ≤ 800nits ≤ 800nits ≤ 800nits ≤  800nits ≥ 4000nits ≥ 4000its ≥ 4000nits
IP rating IP45 IP45 IP45 IP45 IP45 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 40scan 32scan 32scan 13scan 16scan 13scan 13scan 16scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 15kg 15kg 15kg 15kg 15kg 16kg 16kg 16kg
Module size(mm) 250*250 250*250 250*250 250*250 250*500 250*500 250*250 250*500
Cabinet size(mm) 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85
Module pixel 160*160dots 128*128dots 96*96dots 84*84dots 64*64dots 96*96dots 84*84dots 64*64dots
Cabinet pixel 320*640dots 256*512dots 192*384dots 168*336dots 128*256dots 192*384dots 168*336dots 128*256dots
Max Power 600w/sqm 600w/sqm 600w/sqm 600w/sqm 600w/sqm 750w/sqm 750w/sqm 750w/sqm
Average Power 360w/sqm 360w/sqm 360w/sqm 360w/sqm 360w/sqm 450w/sqm 450w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous synchronous/asynchronous
Gray Scale 16 bit 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90% 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃  ﹣20 ~﹢65℃
